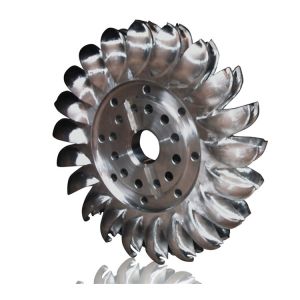

pelton runner mini water turbine
Product Paramenters
pelton turbine is a kind of hydraulic prime mover which uses a special water guide mechanism to lead out a free jet with kinetic energy and rush to the runner bucket to make the runner rotate and do work, so as to complete the conversion of water energy into mechanical energy. The impulse turbine is suitable for the power station with high head and small flow. It transforms the water from the pressure pipe into the high-speed jet after passing through the nozzle. It impacts the runner tangentially and pushes the runner to rotate, so as to drive the rotor of the generator to rotate and generate electricity. In the impulse turbine, it can be divided into cut turbine, inclined turbine and double-click turbine according to the different relative position of working jet and runner and the number of work.
| Runner range | 45cm-180cm |
| Speed range | 150RPM-1000RPM |
| Efficiency | 85%-93% |
| Description | 100kw-70mw Low Price Pelton Turbine |
| Water head | 90m-600m |
| Nozzle number | Single/Multiple |
| Power range | 300kw-20mw |
| Frequency | 50Hz/60Hz |
| Generator Voltage | 400v,800v,6300v,10500v |
| Layout pattern | Horizontal or Vertical |
| Material | Stainless Steel |
| Excitation | Brushless or Static Excitation System |
| Generator Insulation | F/F |
| Lifespan | 30~50 years |
| Manufacturer | Deyang Dongsen Hydropower Equipment Co.,Ltd |
Application
What Kind of hydroelectric generator should I choose?
This belongs to customized products. We could design products according to your requirement. All of our products are strictly designed and manufactured under ISO9001 quality management system and TUV, BV.
Please can you send me below parameters, so our engineers could support your project?
Where is the plant?
1. Design head: ___m
2. Design flow: ___m³/s
3. Frequency: 50Hz or 60Hz?
4. Unit Capacity: ___KW；How many kw each unit? How many units?
5. Power factor COSφ:
6. Generator output voltage: __V
7. On-grid or Off-grid type? (On-grid type voltage: ____Kv)
8. M.a.s.l: ___ m
9. Basic situation about the project and your company introduction.
